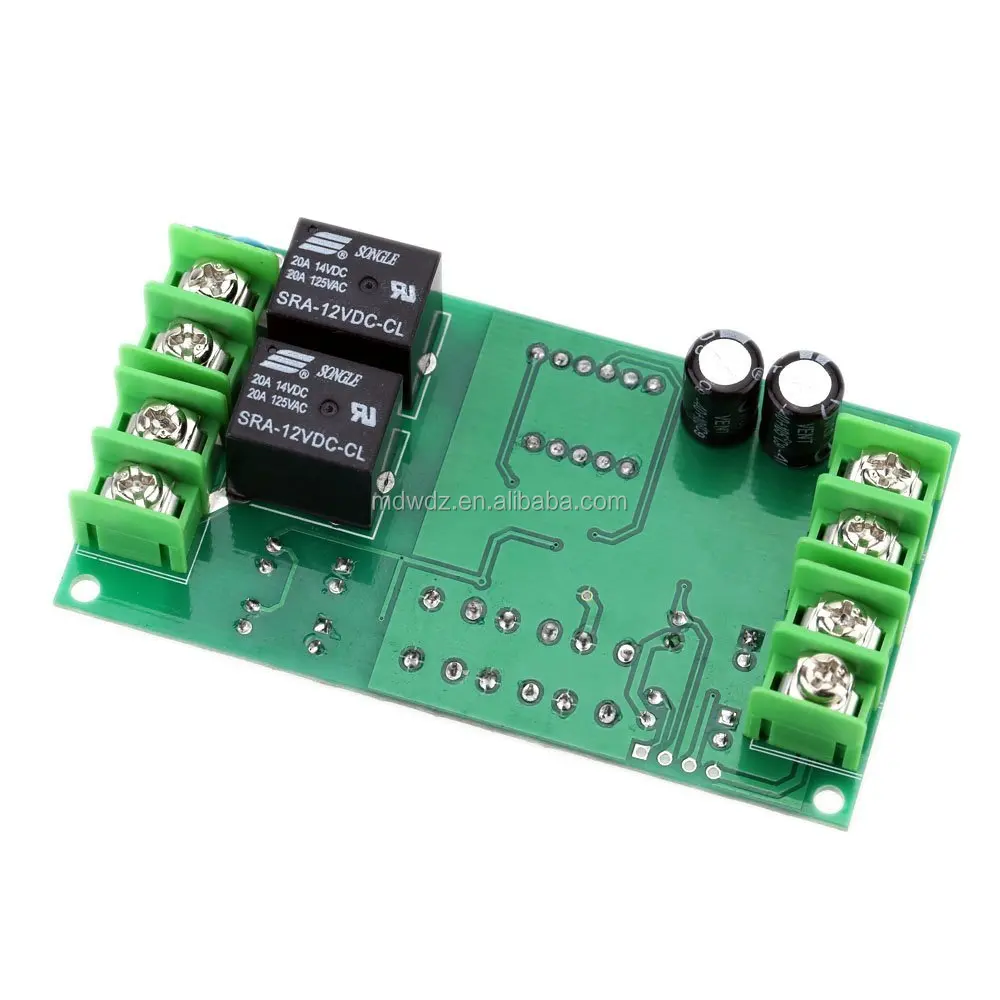

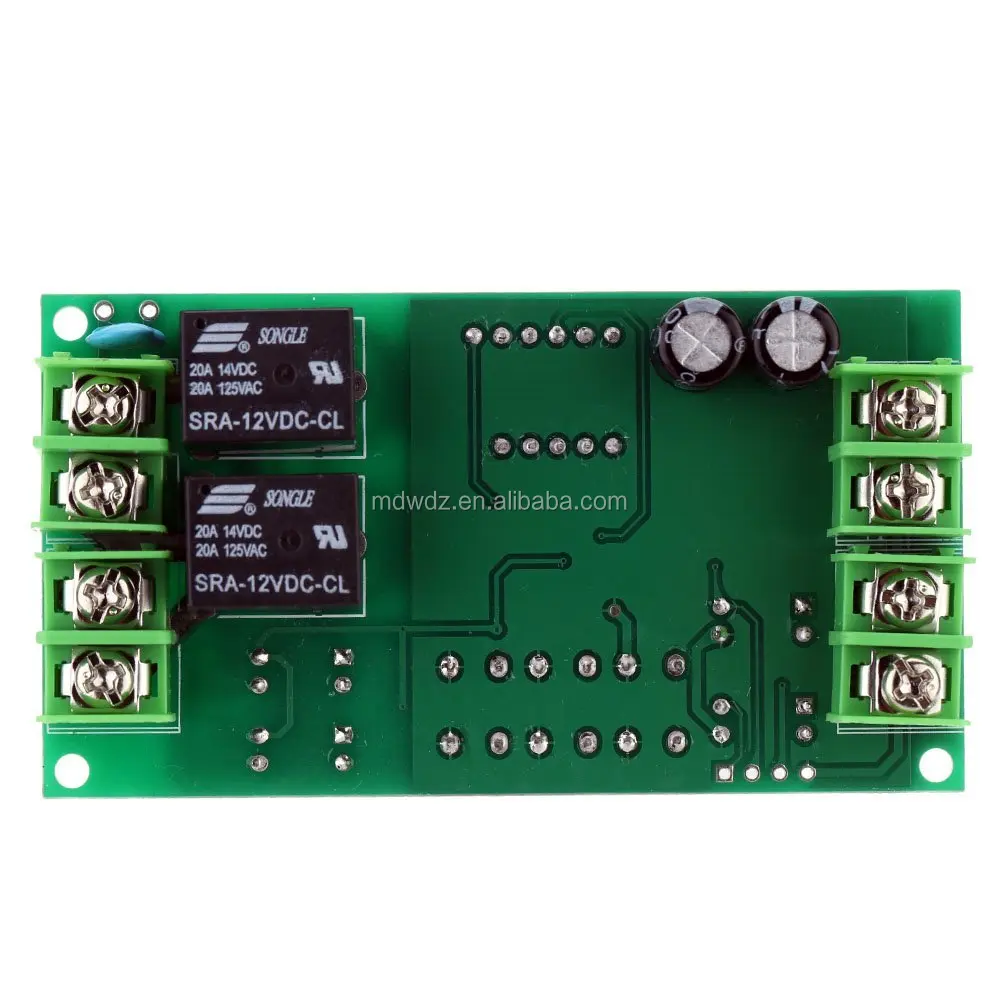

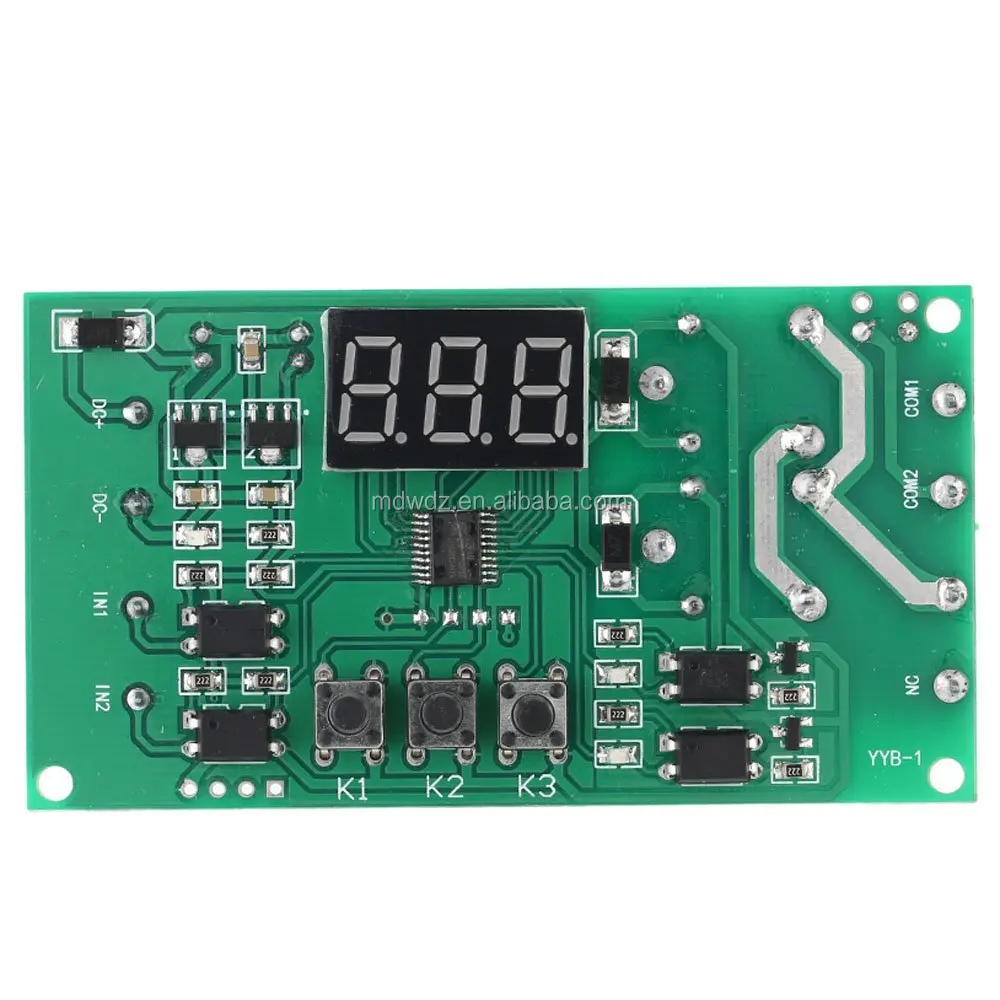

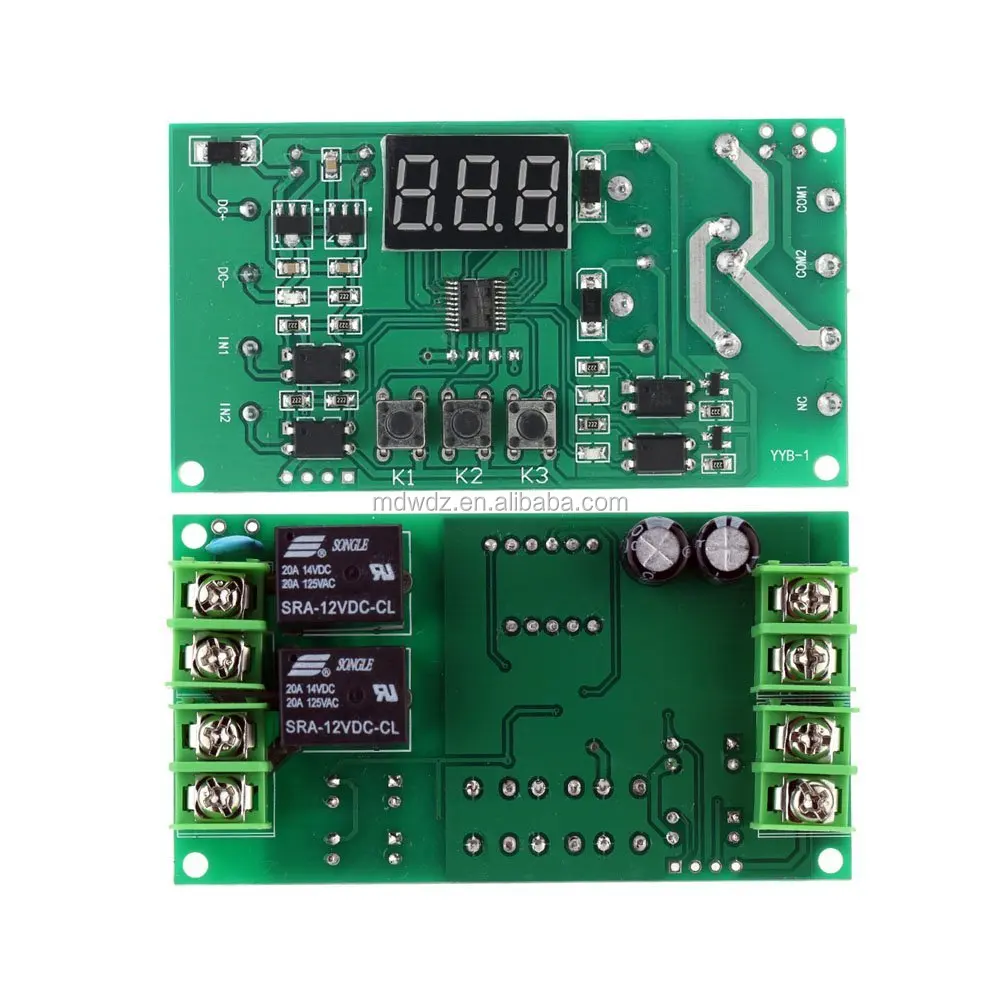

LED Digital Display Relay Control Dual Programmable PLC 12V DC Motor Reversible Module Cycle Delay Timing

FOB Reference Price:Get Latest Price
$1.50 - $2.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Original Brand
Model Number:
DC Motor Reversible Module
Material:
PCB BOARD
Packaging Options:
Standard Pack
Datasheet:
DC Motor Reversible Module(send by email)
Distributor:
MDW LIMITED
Sample:
Support
Warranty:
360days
D/C:
Newest
Shipping Method:
DHL,Fedex,UPS,TNT,EMS,etc
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard package
Port
shenzhen
Lead Time :
1-2days



LED Digital Display Relay Control Dual Programmable PLC 12V DC Motor Reversible Module Cycle Delay Timing

  • Display: LED Digital Display
  • Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes
  • Output Capacity: DC Motor within DC 12V 10A
  • Working Voltage: DC 12V
  • Package List: 1 * Reversible Module

Product description

Specifications:
Static Current: 20mA
Working Current: 50mA
Signal End: Low Level Trigger
PCB Size: 83 * 46 * 27mm / 3.26 * 1.81 * 1.06in
PCB Weight: 41g / 1.47oz
Package Size: 11.5 * 7 * 3cm / 4.53 * 2.75 * 1.18in

Features:
2 types of functions, basically meet the needs for motor running.
User can set the function mode freely.
Automatically memorize the last setting function and time, convenient for use.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.

Working modes selection: after power on, long press K1 for 2s, later into the selection of function modes: P1-1~P1-2.
Function 1: P-1: Trigger signal 1, the motor forward, after the delay time X, stop automatically;
Trigger signal 2, the motor reverse, after the delay time X, stop automatically;
Function 2: P-2:
No need any signal terminal, the motor automatically forward or reverse when power on(cycle operation).
