Battery Charge Controller Switch DC 6V-60V Battery Board for Lead Acid Battery and Lithium Battery

FOB Reference Price:Get Latest Price
$1.50 - $2.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
DC 6V-60V Battery Board
Place of Origin:
Guangdong, China
Brand Name:
Original Brand
Material:
METAL
Packaging Options:
Standard Pack
Datasheet:
DC 6V-60V Battery Board(send by email)
Distributor:
MDW LIMITED
Sample:
Support
Warranty:
360days
D/C:
Newest
Shipping Method:
DHL,Fedex,UPS,TNT,EMS,etc
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard package
Port
shenzhen
Lead Time :
1-2days

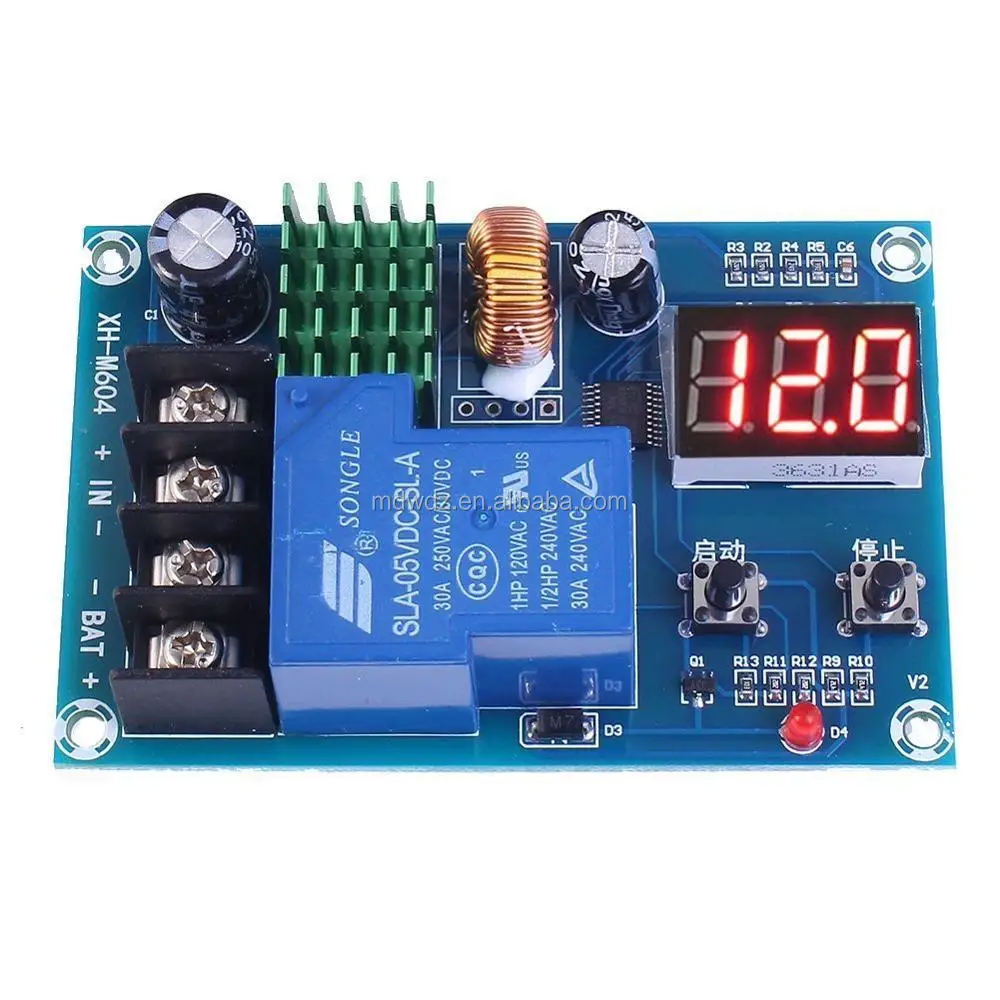

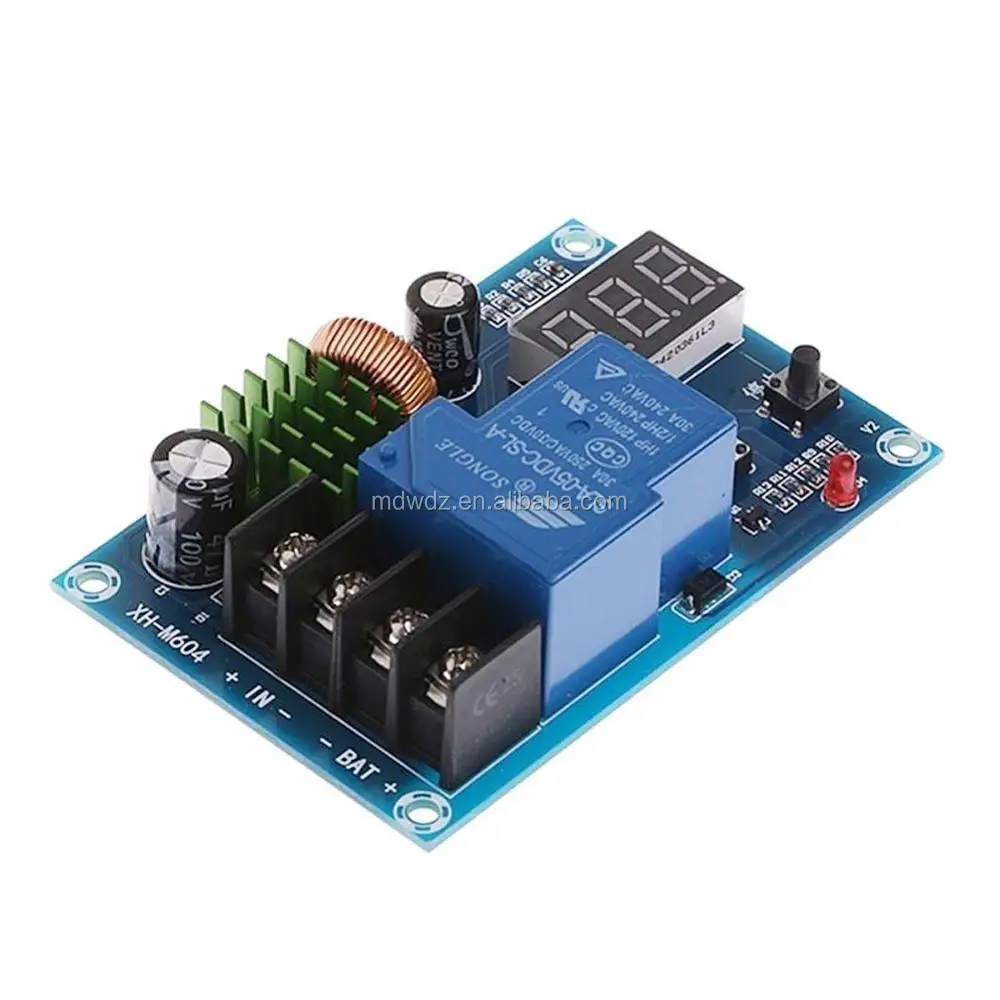

Battery Charge Controller  Switch DC 6V-60V Battery  Board for Lead Acid Battery and Lithium Battery

  • Settable battery charging controller board for DC6-60V lead acid battery and lithium ion battery also comatible with solar panel and wind turbine

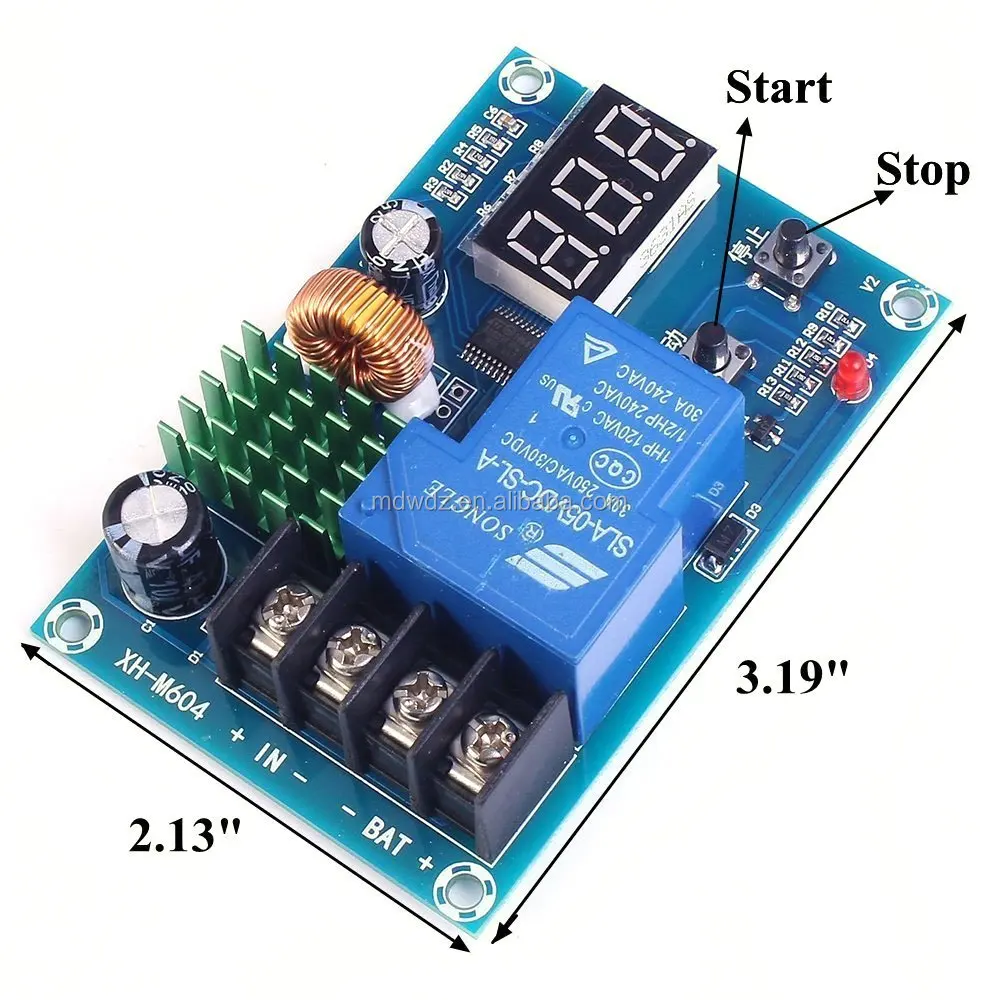

  • On-board momentary push button to set the charging initiation voltage and charging stop voltage and 3 digit red LED display the parameter easy to operation
  • On-board 30A 1 channel relay to control the power on/off automatically,when battery reach the values, module disconnect the power supply to avoid battery overcharging
  • Input Voltage Range: DC6-60V
  • Board Size: 81 X 54 X 18mm/3.19 X 2.13 X 0.71inch (L x W x H)

Product description

Specifications:
Input Voltage Range: DC6-60V
Dispaly and Control Accuracy: 0.1V
Compatible Battery:lead acid and lithium ion battery(DC 6-60V)
Board Size: 81 X 54 X 18mm/3.19 X 2.13 X 0.71inch(L*W*H)

Operation Manual:
1.Set the charging initiation voltage: Under the normal voltage display status, press the ""Start"" button, the module will display the charging initiation voltage, long press this button about 3s, the LED flash, then press the ""Start"" and ""Stop"" button to set the vlues.

2.Set the charging stop voltage: Under the normal voltage display status, press the ""Stop"" button, the module will display the charging stop voltage, long press this button about 3s, the LED flash, then press the ""Start"" and ""Stop"" button to set the vlues.

3.Reset:under the normal display status, press the ""Start"" and ""Stop"" button at the same time the LED will display""888"", then release and finish.(the default charging initiation voltega is 12V and charging stop voltage is 14V)

4. Voltage Setting Calculation: Charging Initiation Voltage= Battery Rated Voltage x 0.9; Charging Stop Voltage=Battery Rated Voltage x 1.2; Charging Current= Battery Rated Current x 0.1

Package Included:
1X  Battery Charge Protection Board






Shipping:


1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong. If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands .




Product Type & Condition :

1. Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.




Warranty & Guarantee :

All components we sell the quality with 30 days Return policy from the day of shipment.




Buyer Reading:

1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution.

2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.


If you have any other questions please feel free to contact us in any time!



Read before purchase

MDW is a honest and reliable electronics suppliers, we never cheat every client and don’t want to deal unpleasant business. Because of the transportation cost is expensive for international trade, for the both deal going smoothly. Please refer to the following information to purchase products from us before:



1. Please carefully check our description of products: Delivery terms, Guarantee period, Sales return and Service policy.



2. Please confirm you want to buy part numbers, it can apply to your device, if not because of quality problem, MDW will not responsible.



3. In test process, if have the product quality problems please inform us within the guarantee period date that we can help you to replacement of goods or arrange refund.. If exceed the date, MDW will not responsible, after-sales service.



4. Below case as guarantee is invalid:

(1). Warranty (maintain ) label is removed or damaged.

(2). Products have been used.

(3). Artificially damaged, incorrectly operation mode.

(4). In transit cause the issues and goods damaged case, the Express will takes responsibility for any mistakes, as our term for FOB Offer.
